Overview

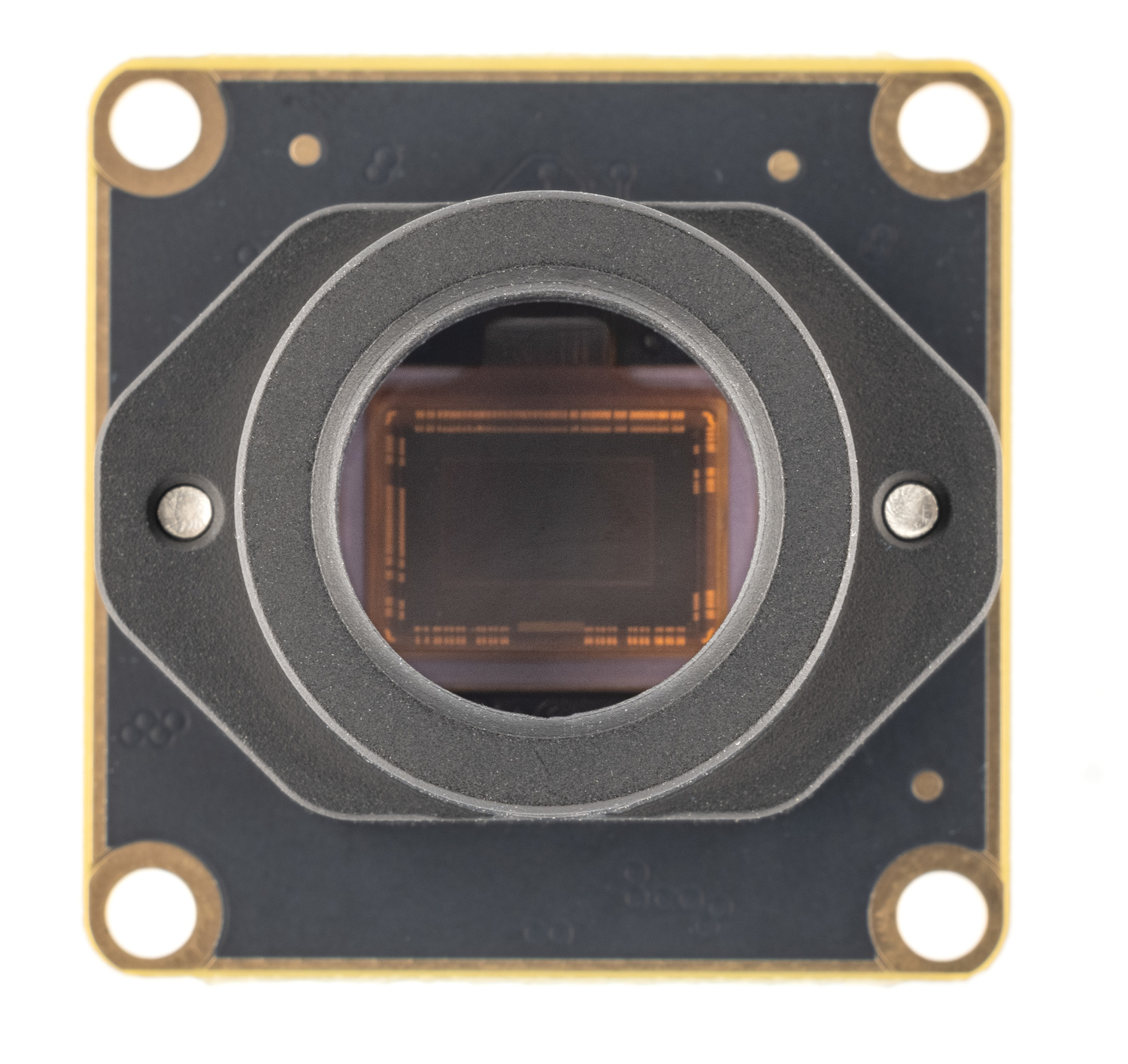

Low-light MIPI for Raspberry Pi & Jetson. The 462x-CSI-M12 outputs raw stream through a 4-lane CSI-2 connector while keeping the price and footprint tiny.

  • IMX462 RGB or Mono sensor, M12/M12L or bare board
  • 22-pin FFC (0.5mm) standard connector
  • <1 W typical - perfect for edge-AI, night-vision robots


Camera variants

SKU Lens mount Chroma Note
462C-CSI-M12 9.5mm for wide angle lenses RGB Color Most common use for wide angle and fish-eye lenses.
462C-CSI-M12L 14.7mm for regular and telephoto lenses RGB Color Modification for lenses above 6mm (typical)
462M-CSI-M12 9.5mm for wide angle lenses Mono Same as C3-462C-M12 but Mono sensor for better light sensitivity
462M-CSI-M12L 14.7mm for regular and telephoto lenses Mono Same as C3-462C-M12L but Mono sensor for better light sensitivity
