462x-CSI
Camera variants
| SKU | Lens mount | Chroma | Note |
| 462C-CSI-M12 | 9.5mm for wide angle lenses | RGB Color | Most common use for wide angle and fish-eye lenses. |
| 462C-CSI-M12L | 14.7mm for regular and telephoto lenses | RGB Color | Modification for lenses above 6mm (typical) |
| 462M-CSI-M12 | 9.5mm for wide angle lenses | Mono | Same as 462C-M12 but Mono sensor for better light sensitivity |
| 462M-CSI-M12L | 14.7mm for regular and telephoto lenses | Mono | Same as 462C-M12L but Mono sensor for better light sensitivity |
MIPI CSI2 wiring
Interface connector 22pin 0.5mm pitch 687122183622 from Würth Elektronik. Top facing pins.
| Pin | Signal | Description |
| 1 | GND | |
| 2 | D0_N | |
| 3 | D0_P | |
| 4 | GND | |
| 5 | D1_N | |
| 6 | D1_P | |
| 7 | GND | |
| 8 | CLK_N | |
| 9 | CLK_P | |
| 10 | GND | |
| 11 | D2_N | |
| 12 | D2_P | |
| 13 | GND | |
| 14 | D3_N | |
| 15 | D3_P | |
| 16 | GND | |
| 17 | ENABLE | Wired to sensor XCLR |
| 18 | N.C. | |
| 19 | GND | |
| 20 | SCL | |
| 21 | SDA | |
| 22 | +3.3V |

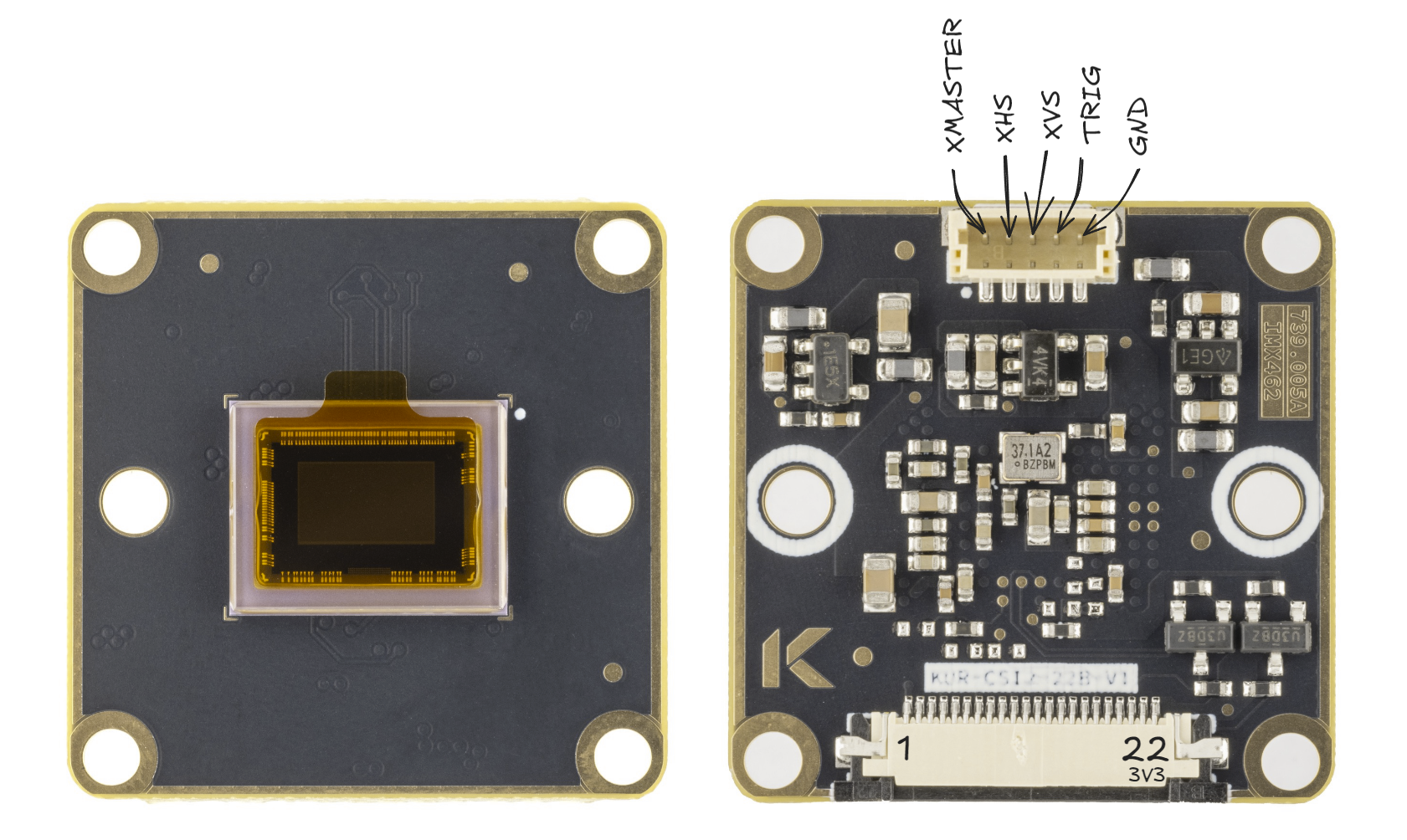

AUX wiring
Interface connector 5 pin 1mm pitch 665305124022 from Würth Elektronik.
| Pin | Signal | Description |
| 1 | XMASTER | Master / Slave selection |
| 2 | XHS | Horizontal sync signal |
| 3 | XVS | Vertical sync signal |
| 4 | TRIG | Trigger mode input |
| 5 | GND |
