Dimensions

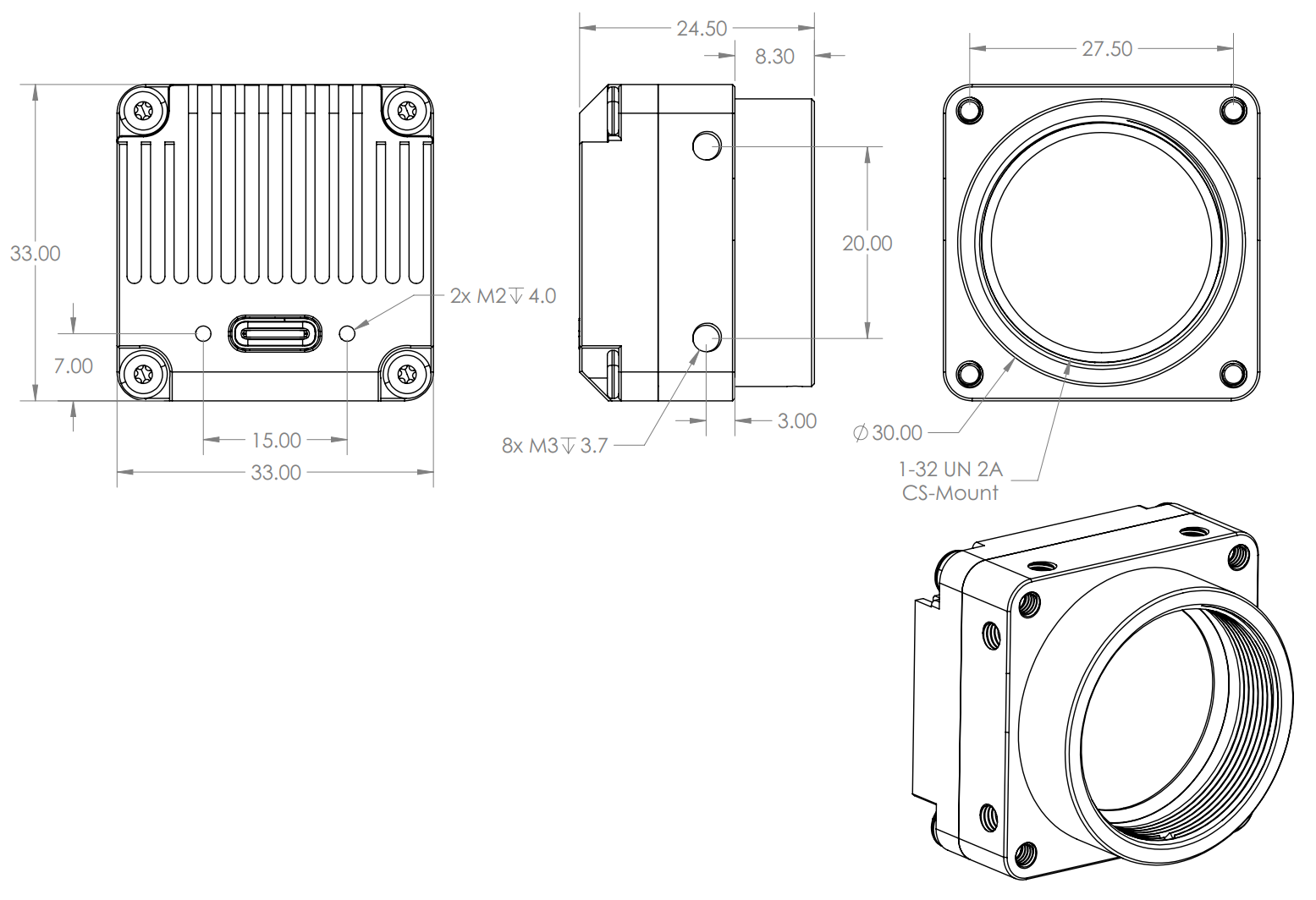

Boxed camera

Weight 36g
Dimensions 33×33×24.5mm
Ingress protection IP40 (No water protection, protected against solid objects)
Lens mount CS-mount
Operational temperature

-50 ... 85°C (non condensing)


3D model @ GitHub

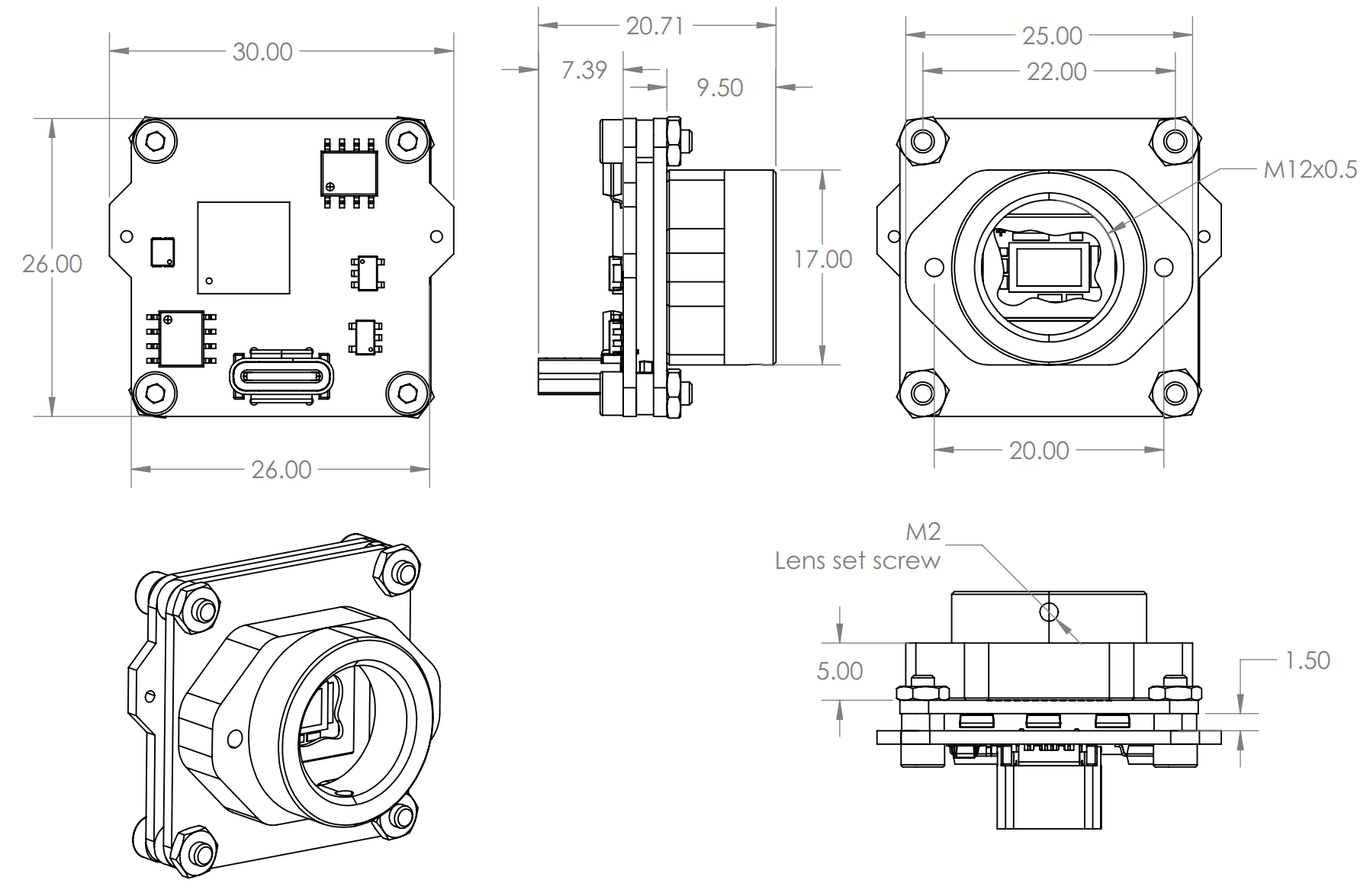

Board camera M12

Weight 11.2g
Dimensions 30×26×20.7mm
Ingress protection IP40 (No water protection, protected against solid objects)
Lens mount M12 (9.5mm), M12L (14.7mm)
Operational temperature

-50 ... 80°C (non condensing)


3D model @ GitHub
